6.2 FlyBase

Learning Objectives

• Use FlyBase to look up information about genes by name, gene symbol, or FlyBase ID number
• Use FlyBase to find fruit fly models of human disease

6.2.1 What is FlyBase?

Figure 6.1: Katherine Cox (2021). Screenshot of the top of the FlyBase homepage https://flybase.org/. License: CC BY 4.0

FlyBase (flybase.org) is a website for the Drosophila scientific community that organizes research results about Drosophila. We can use it to find out what has been discovered about genes we’re interested in.

There are many species of Drosophila. Most research is done using Drosophila melanogaster (abbreviated Dmel), but FlyBase also has information about other species of flies.

6.2.2 FlyBase Gene Pages

One important role for FlyBase is keeping track of all the Drosophila genes and what we know about them. FlyBase maintains a webpage for each known Drosophila gene.

FlyBase ID

Every gene on FlyBase has a FlyBase ID number that looks like this: FBgnXXXXXXX, with the X’s being different numbers. FB stands for FlyBase and gn stands for gene. There are ~17000 Drosophila melanogaster genes. Each known Drosophila gene has its own FlyBase ID, and you can use the FlyBase ID to find information about the genes such as what they do and whether they are related to any human genes.

Look up a gene on FlyBase

You can look up a gene on FlyBase using the “Jump to Gene” search box.

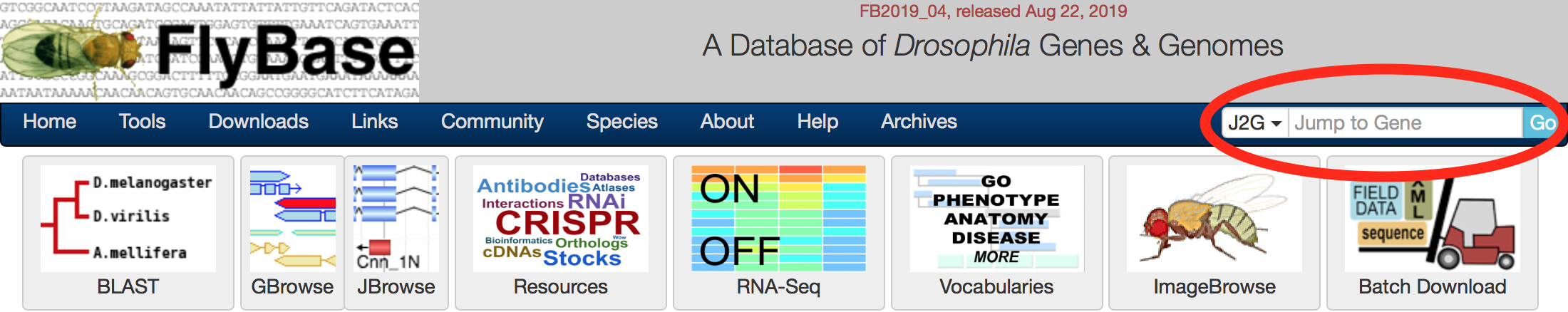

Figure 5.1: Katherine Cox (2021). Screenshot of the top of the FlyBase homepage https://flybase.org/. License: CC BY 4.0

Here is the page for the gene with FlyBase ID FBgn0000024. This page has a ton of useful information for finding out more about this gene! We’ll highlight a few important things to start with:

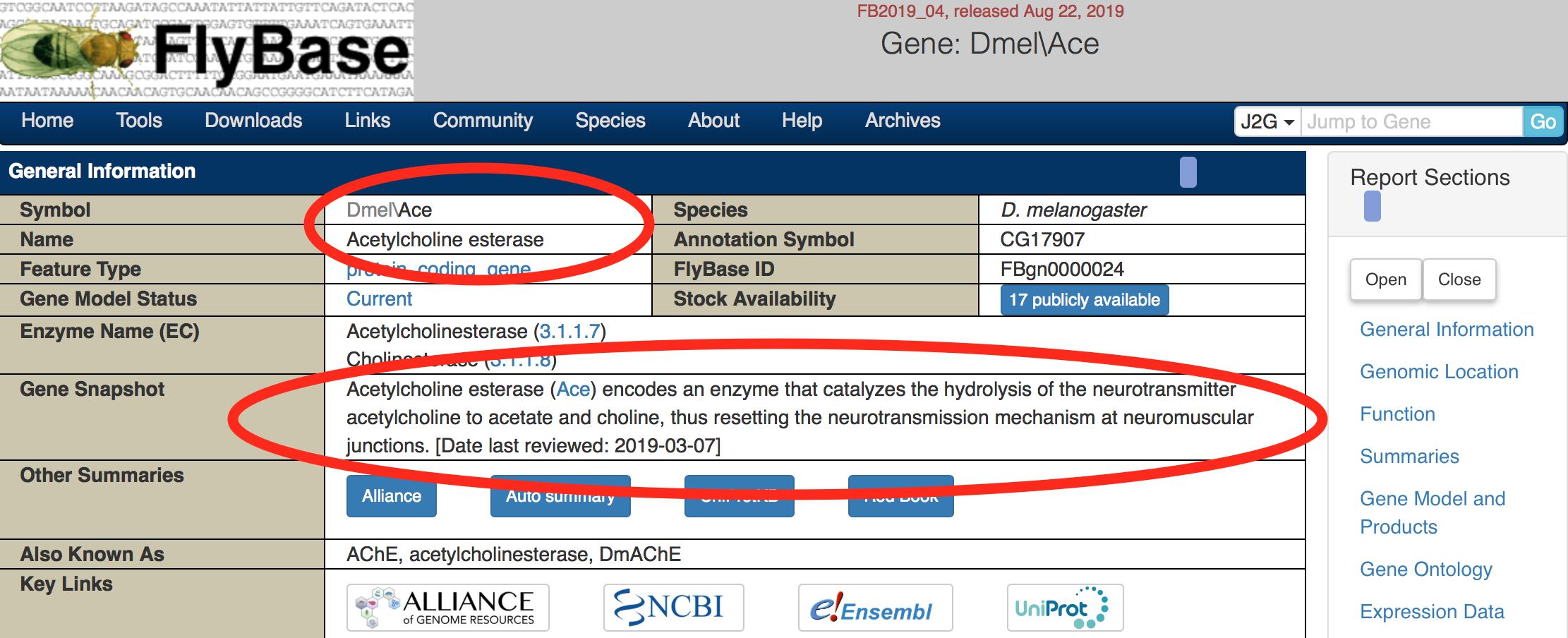

Figure 5.2: Katherine Cox (2021). Screenshot of the top of the FlyBase gene page for Ace https://flybase.org/reports/FBgn0000024. License: CC BY 4.0

• The gene Symbol and Name. Genes are usually named after what they do, and their symbol is a usually shortened version of the name. In this case, gene FBgn0000024 is named Acetylcholine esterase, and is abbreviated Ace. (The Dmel stands for Drosophila melanogaster.)
• The Gene Snapshot gives a quick summary of what we know about this gene. In this case, it’s an enzyme involved in neurotransmission.

Gene Ontology

Further down the page are the Gene Ontology or GO terms. There are 3 categories of GO terms:

• Molecular Function: What does this gene do at a molecular level? How does it interact with other molecules? (Examples: enzyme - catalyzes a reaction, DNA binding - binds to DNA, transporter - moves something across a membrane)
• Biological Process: What does this gene do for the organism? What’s the “big picture”? (Examples: involved in development, reproduction, immune system, etc.)
• Cellular Component: Where in a cell is the gene found? (Examples: the nucleus, mitochondria, cell membrane, etc.)

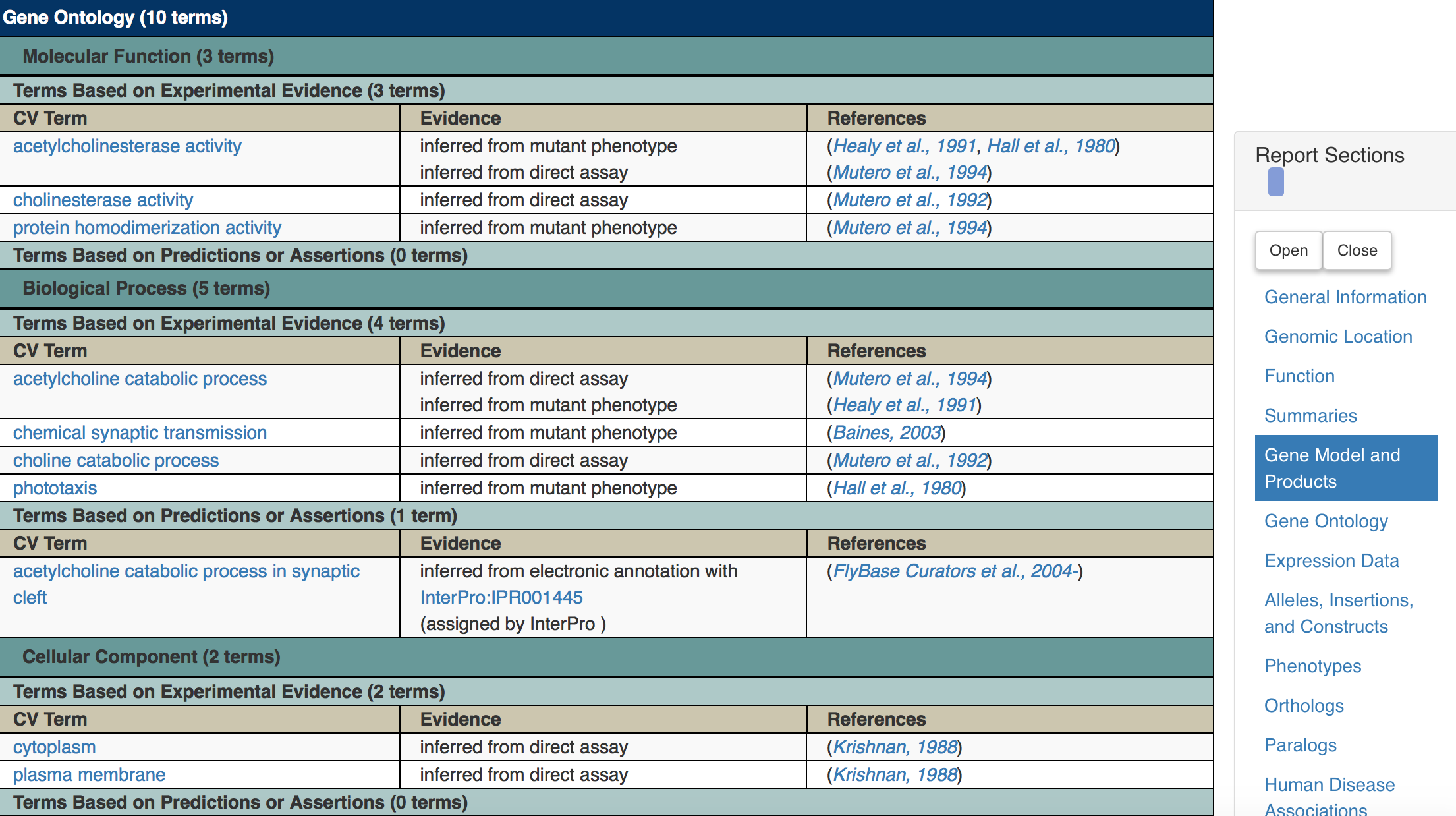

Figure 5.3: Katherine Cox (2021). Screenshot of the Gene Ontology section of the FlyBase gene page for Ace https://flybase.org/reports/FBgn0000024#function. License: CC BY 4.0

For the Ace gene, we can see its molecular functions include acetylcholinesterase activity (it’s an enzyme). You can click on these terms to find out more about them. For example, if you click on “acetylcholinesterase activity” you can find out more about the reaction that is being catalyzed, and find other genes that carry out this same reaction.

You can also see from this table how we know this information - it tells you what kind of evidence we have to prove it, and it links to the paper where that evidence came from.

Other information

This page contains a lot of other information, including any known interactions of this gene with other genes, information about similar genes in other organisms (orthologs), and whether related genes are relevant to any human diseases (we will discuss how to explore these in the next section). As you investigate Drosophila data and find genes that you want to learn more about, FlyBase is a good place to start.

Some genes are unknowns

There are some genes that we still don’t know anything about. We can tell from the DNA sequence that there is a protein encoded there because we can see a long string of codons for amino acids. But we’ve never discovered what that protein does. More research is needed!

Here’s an example of an unknown gene:

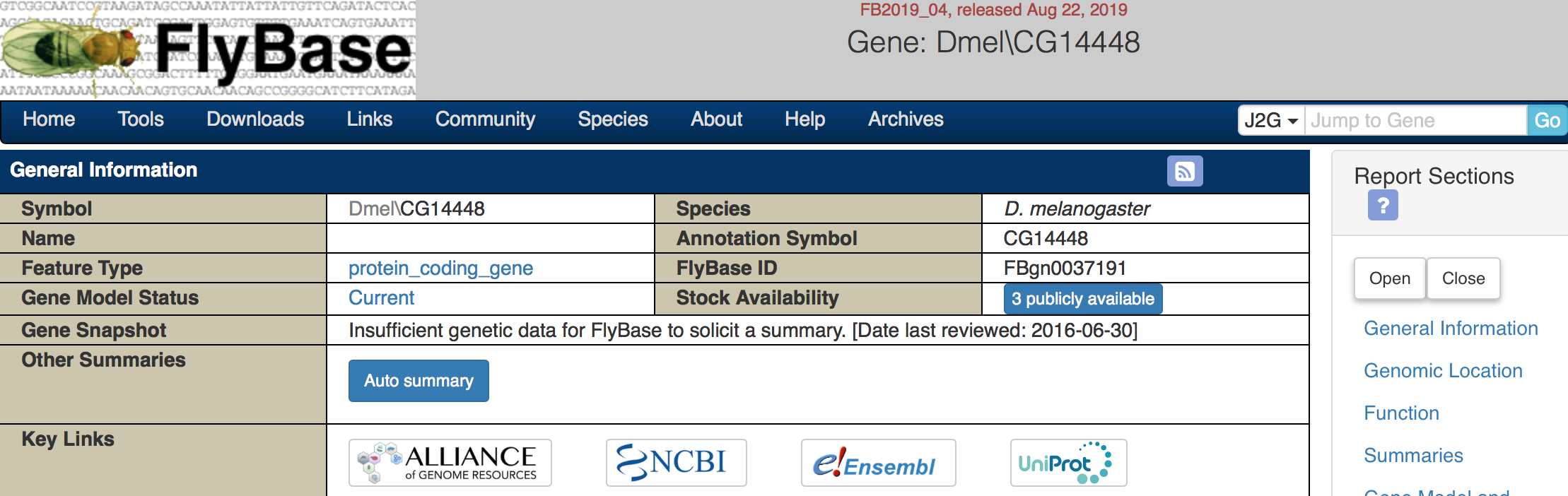

Figure 5.4: Katherine Cox (2021). Screenshot of the top of the FlyBase gene page for unknown gene CG14448 https://flybase.org/reports/FBgn0037191. License: CC BY 4.0

As you can see, it doesn’t have a name - we don’t know what to name it since we don’t know anything about it. There is also no information for the gene snapshot.

Unknown genes can be frustrating or disappointing, since they don’t provide us with any information. But they can also be exciting - maybe this data is a step towards finding out what they do!

Use FlyBase to investigate labial

The labial gene (gene symbol: lab) gene is a gene involved in the copper region of the Drosophila midgut, as well as controlling the identity of segments that contribute to the head and the anterior thorax. We can use FlyBase to learn more about this gene.

In most datasets, genes will be listed by an ID number rather than their name, such as the FlyBase ID number (FBgn number). We can use FlyBase to find these IDs and match them up to data in the dataset we’re investigating.

Exercise

Go to FlyBase and search for “lab” in the “Jump to Gene” searchbar.

1. What is the FlyBase ID number for lab?
2. What biological processes is the lab gene involved in?

6.2.3 Finding Orthologs

FlyBase also contains information about orthologs for each of the FlyBase genes. Orthologs are genes that have similar sequences and functions across species.

Finding orthologs can be challenging - the sequences are similar, but not identical, and it can be hard to predict whether the gene is likely to be doing the same thing in other species. There are several different computer programs that will analyze genes (using different features, including their nucleotide and amino acid sequences, predicted structures, and genome locations) to try to identify orthologs.

DIOPT to the rescue!

With so many options for finding orthologs, how do you know which one to use? Fortunately, we don’t have to choose.

DIOPT (DRSC Integrative Ortholog Prediction Tool) is a convenient tool that combines and summarizes information from several different ortholog prediction programs. Rather than having to pick a single program, you can look at the DIOPT score and see how many of the programs think that a particular gene is an ortholog.

The DIOPT score is very straightforward: out of the total number of ortholog prediction programs, how many of them predicted this gene was an ortholog? As of writing this tutorial, there are 15 programs for predicting fly-human orthologs, so a score of 7 means 7 out of those 15 programs think that the gene is an ortholog.

FlyBase uses DIOPT to report orthologs. If you scroll down and expand the Orthologs section for a gene, you can see the list of potential orthologs and their DIOPT scores for several different species, including humans. It also tells you which programs did or did not predict that particular ortholog.

Here are the top few predicted human orthologs for the Ace gene:

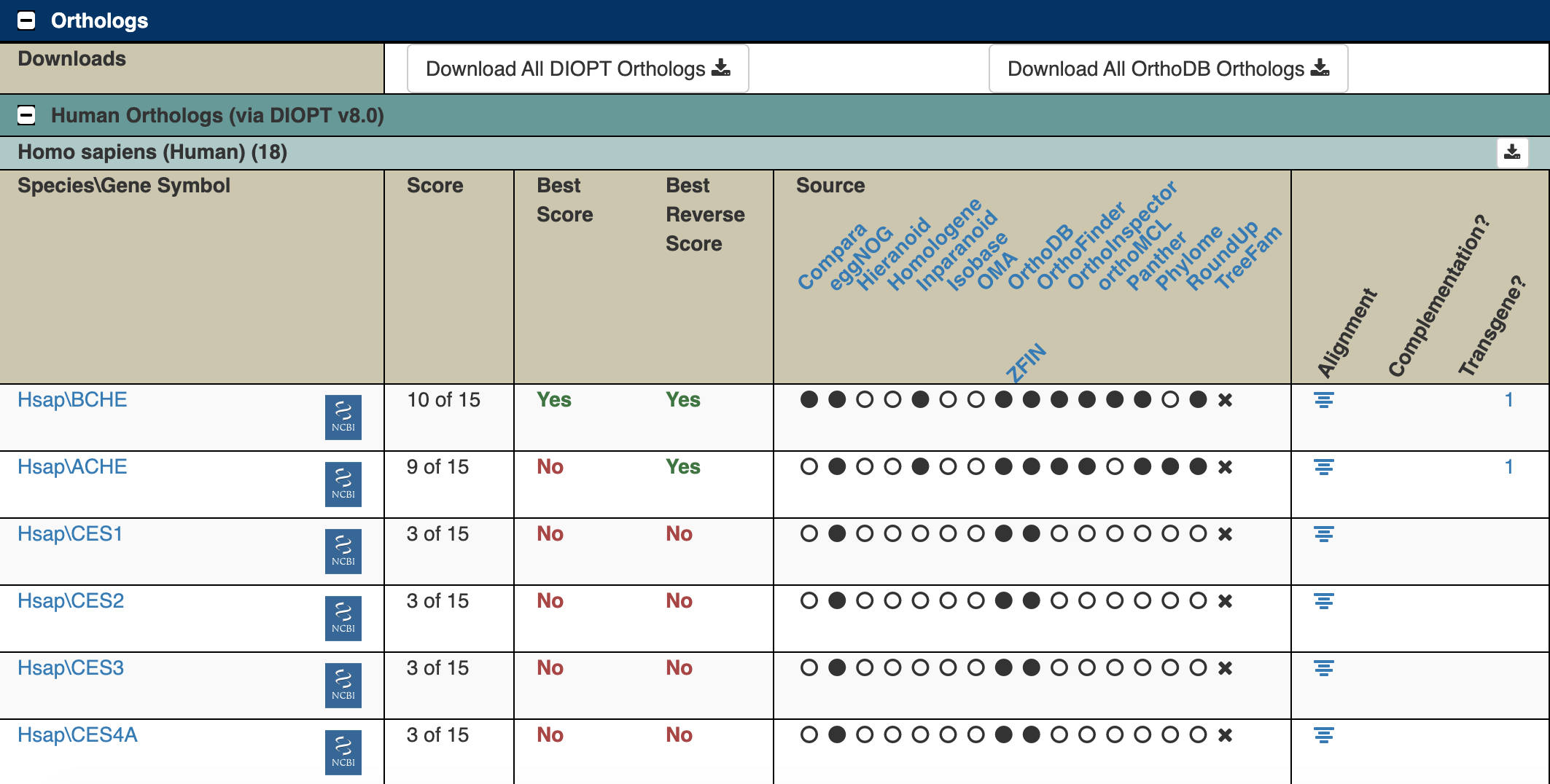

Figure 5.5: Katherine Cox (2021). Screenshot of the Orthologs section of the FlyBase gene page for Ace https://flybase.org/reports/FBgn0000024#orthologs. License: CC BY 4.0

In the results, “Hsap” stands for Homo sapiens, and the letters and numbers after the slash are the gene symbol. You can click on these gene symbols to find out more about the human genes.

As you can see, the first two results (BCHE and ACHE) score quite well (10 out of 15 and 9 out of 15), so there’s a pretty good chance that they are orthologs. It’s not uncommon for there to be multiple human genes that are orthologs of a single fly gene - humans have larger and more complex genomes, so they may have multiple specialized versions of a gene where flies only need a single version. The rest of the results do not score very high and are much less likely to be true orthologs.

Once you know the likely human orthologs, you can then research those genes in other databases and scientific literature. We can go back and forth between flies, humans, and other species and compare what we know across all species to try to build up an understanding of what the gene does and what happens when it stops working correctly.

Exercise

Go back to the FlyBase page for the lab gene.

1. What is the most likely human ortholog for the lab gene?
2. How many programs think this gene is an ortholog of lab?

6.2.4 Disease models

Because disease models are of particular interest, there is a special section in the FlyBase gene report about relationships between that FlyBase gene and any human diseases. Note that there are 3 types of relationships that are reported:

• Models Based on Experimental Evidence: someone has studied flies with disruptions to this gene and has shown that the flies have similar symptoms to humans
• Potential Models Based on Orthology: we think this gene could be used to study a particular disease because we think it’s an ortholog, but we don’t have proof.
• Modifiers Based on Experimental Evidence: this gene doesn’t directly cause a disease, but makes a disease caused by a different gene better or worse

Disease report for the Ace gene

The Ace gene has no known or predicted relationship to any human diseases, so its report is pretty boring in this section:

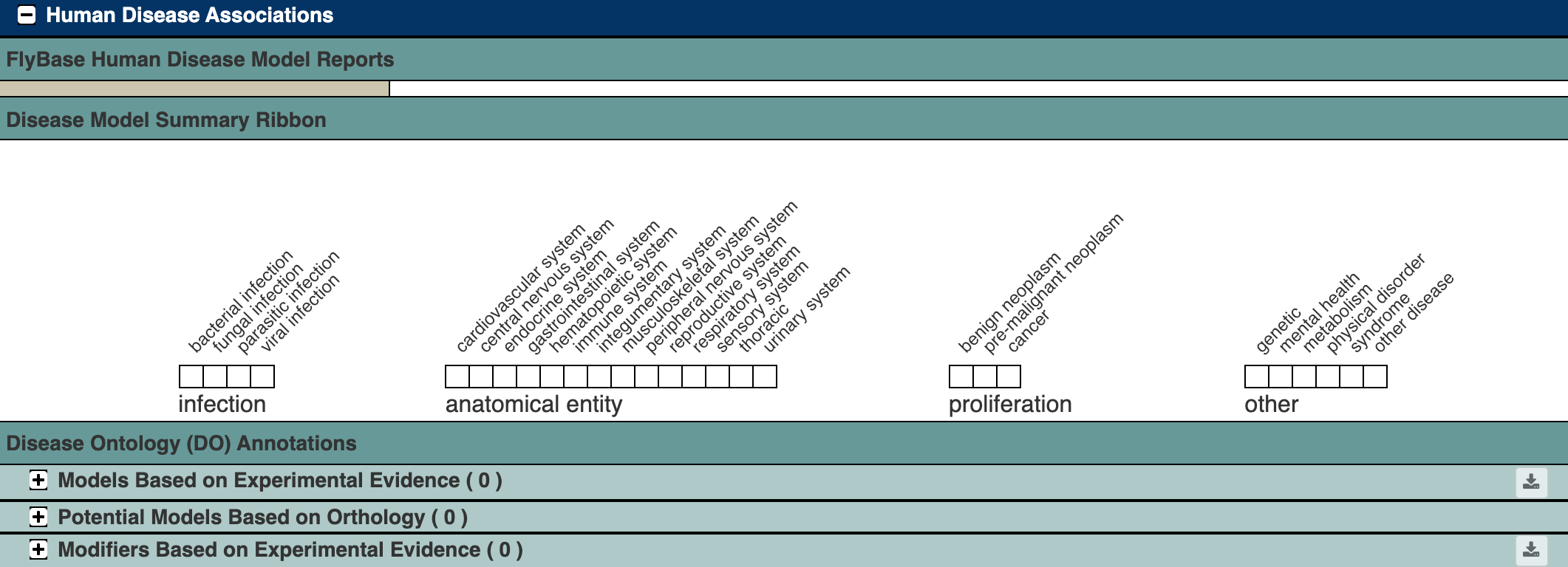

Figure 6.2: Katherine Cox (2021). Screenshot of the Human Disease Associations section of the FlyBase gene page for Ace https://flybase.org/reports/FBgn0000024#hdm. License: CC BY 4.0

Huntington’s Disease

Let’s take a look at something more interesting. Say we’ve heard that scientists are using fruit flies to study Huntington’s disease. Can we use FlyBase to find out more?

FlyBase has lots of information besides just reports about specific genes. If you go to the FlyBase homepage and scroll down to the Quick Search box, you can see some of the categories of information available. Let’s search for the Huntington’s disease model:

1. Go to the FlyBase homepage
2. In the Quick Search box, select “Human Disease”
3. Enter “Huntington’s disease”

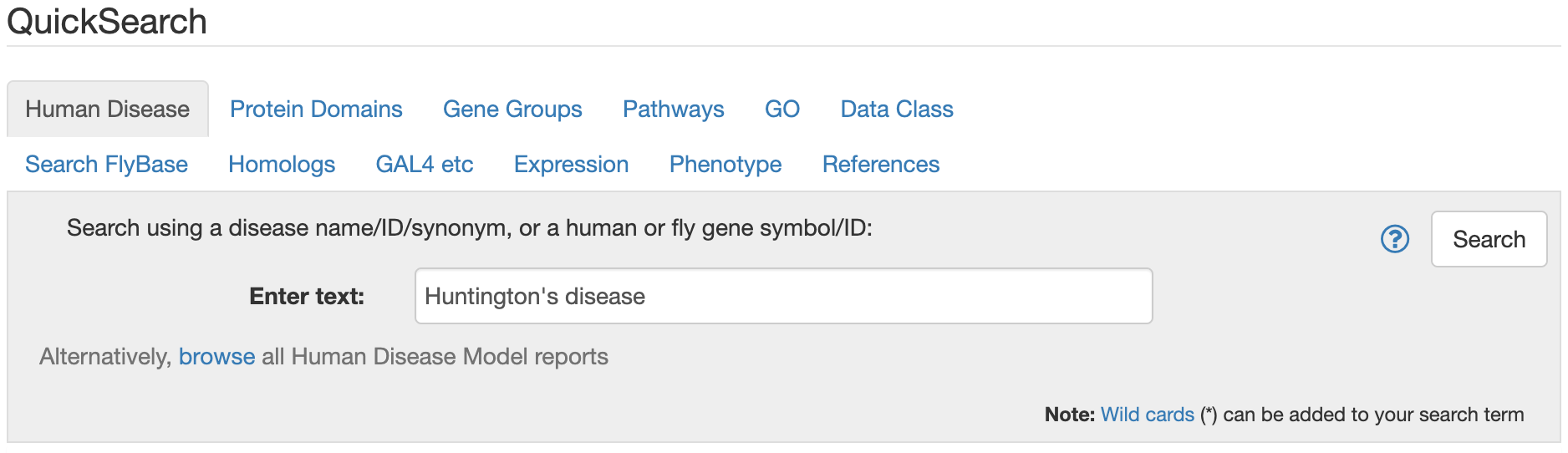

Figure 6.3: Katherine Cox (2021). Screenshot of FlyBase QuickSearch https://flybase.org/. License: CC BY 4.0

This will give you a list of everything related to Huntington’s disease on FlyBase:

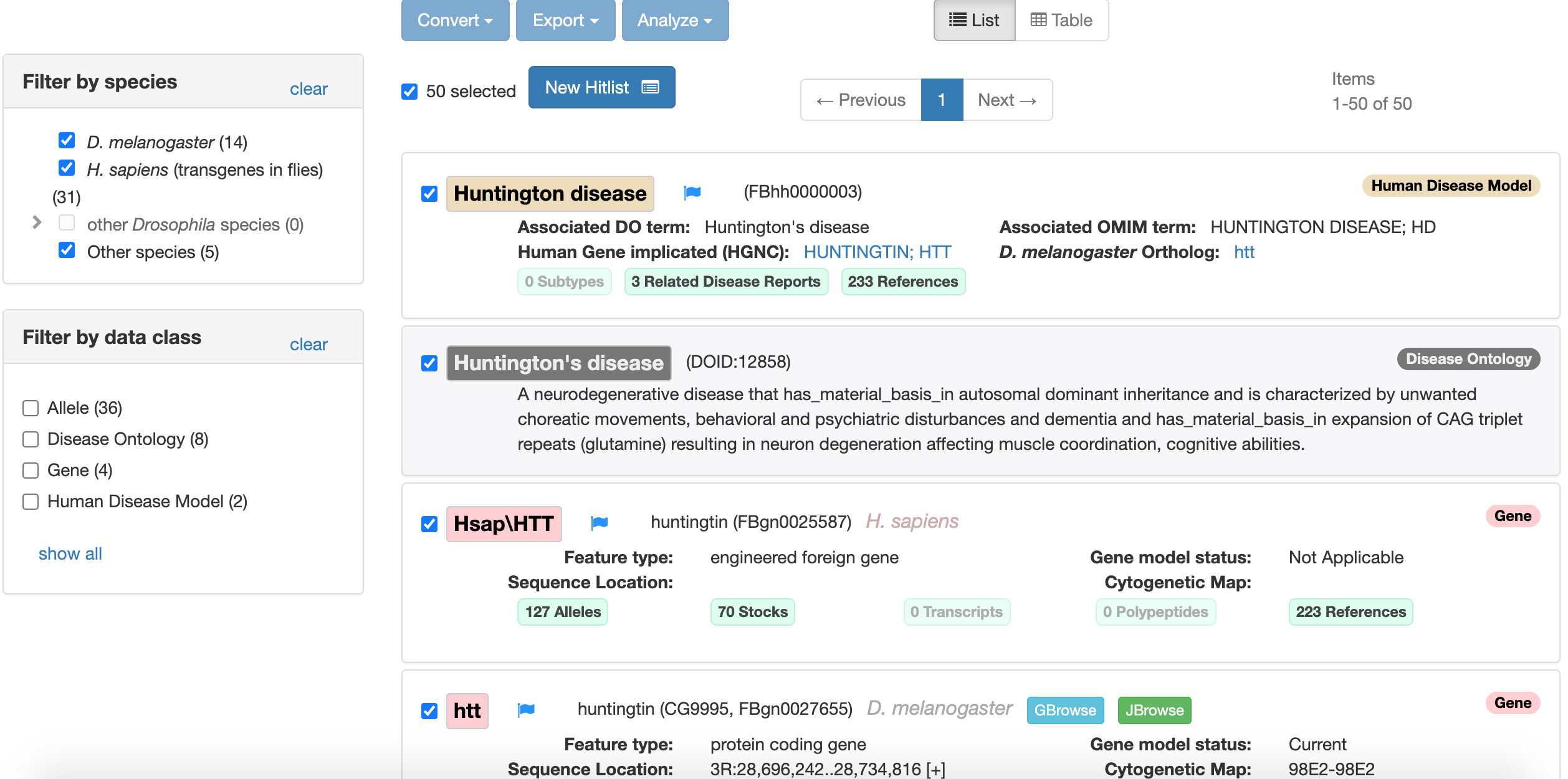

Figure 6.4: Katherine Cox (2021). search results for Huntington’s disease on FlyBase https://flybase.org/. License: CC BY 4.0

At the top we see: The Human Disease Model report - information about models for this disease The Disease Ontology report - information from a database about human diseases The Gene Report for the human (Homo sapiens) gene: Hsap/HTT The Gene Report for the Drosophila homolog: Dmel/htt

The Human Disease Model report is a good place to start. Clicking on this result takes us to the full report.

At the top we can see some information about the disease, including a brief overview of the disease and a link to the OMIM (Online Mendelian Inheritance in Man) database entry for the disease:

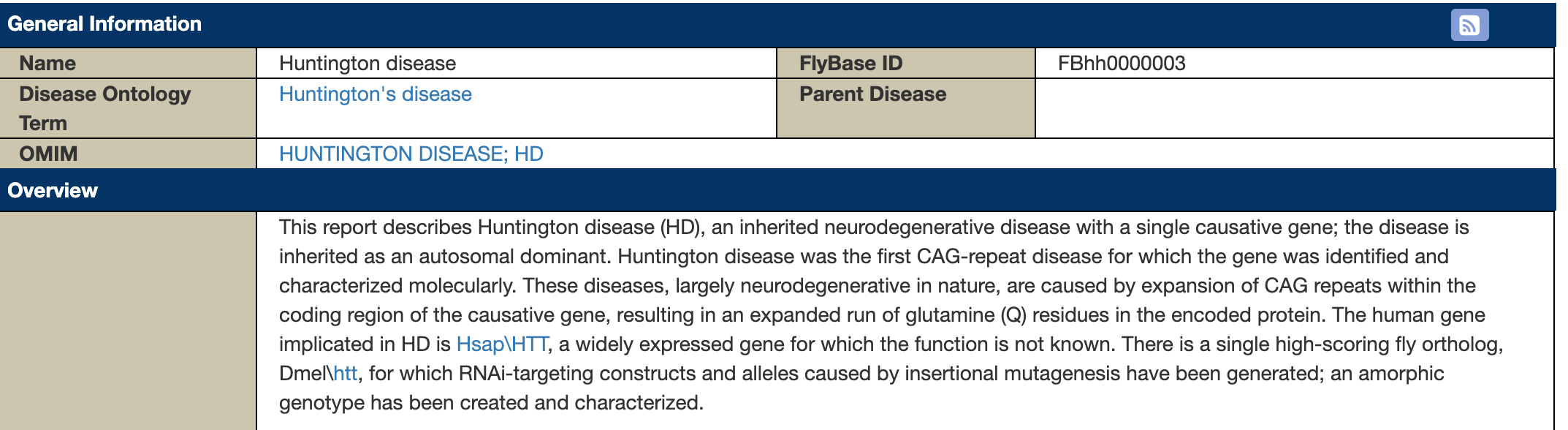

Figure 6.5: Katherine Cox (2021). Screenshot of the top of the FlyBase Human Disease Model page for Huntington’s disease https://flybase.org/reports/FBgn0000024. License: CC BY 4.0

Further down the page, there is a section describing the relevant Drosophila gene(s):

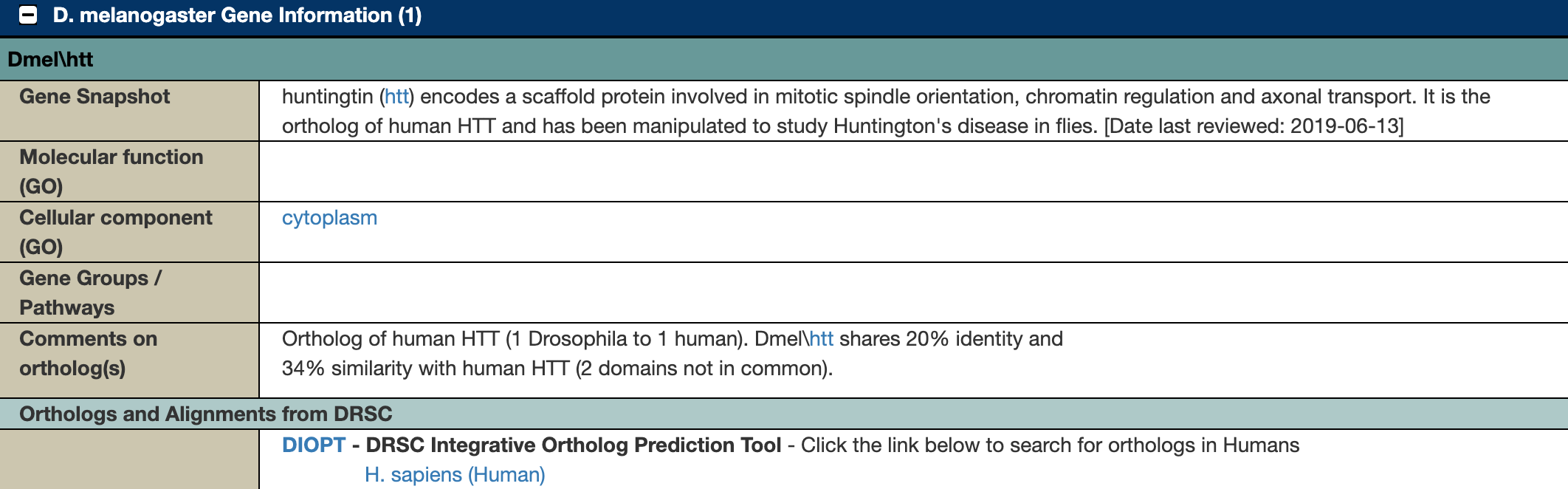

Figure 6.6: Katherine Cox (2021). Screenshot of the Drosophila Gene Information section of the FlyBase page for the Huntington’s disease Human Disease Model https://flybase.org/reports/FBhh0000003#dmel_gene_info. License: CC BY 4.0

Investigate the htt gene

Now that we know the htt gene is used to model Huntington’s disease, let’s find out more about this gene.

Exercise

Look up the Gene report for the htt gene. The easiest way to do this is to type “htt” in the Jump to Gene box.

1. What biological processes is the htt gene involved in?
2. How many different alleles (versions of the gene) can be used as models of Huntington’s disease, based on experimental evidence?

htt alleles (variant forms of the gene)

Here we can see that there are actually multiple different variants of the htt gene that have been experimentally shown to cause symptoms similar to Huntington’s disease in flies. These variants all have different types of mutations affecting the htt gene.

It can be useful to have different versions of the gene that all mimic Huntington’s disease. Depending how these mutations were made or discovered, they can be useful for different types of experiments. Also, if experiments turn out the same for several different disease-causing mutations, it’s more likely that the result will transfer to other organisms, and isn’t just a quirk of a particular mutation.

6.2.5 Summary

FlyBase is a fantastic source of information. You can use FlyBase to find:

• Gene functions and interactions
• Orthologs (Drosophila genes that are related to genes in other species, including humans)
• Drosophila genes that are relevant to human diseases
• The name, symbol or ID number for a gene, so you can research it on other databases.

6.2.5.1 Learn More

FlyBase is designed to help scientists do research, so it has a lot of information, and we’ve just looked at a few of the basic features. Here are some resources if you’d like to learn more:

• Check out the “Help” tab on FlyBase
• Visit FlyBase TV, the FlyBase YouTube channel
• Look at the FlyBase “New to Flies” wiki page

---
